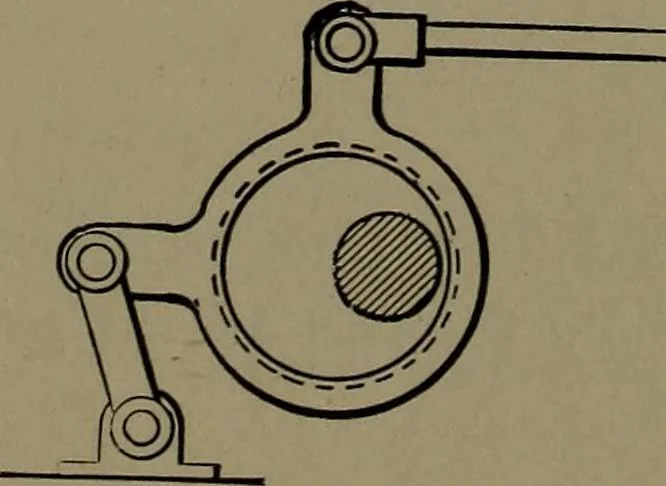

271. SHIFTING ECCENTRIC—The ec-centric is movable on worm gear and itssleeve, which is keyed to the shaft. The tan-gent worm is pivoted in lugs on the eccentric. … 3 272. VALVE MOTION ECCENTRIC —The rocker connecting link increases themotion of the valve rod and travel of thevalve. STEAM POWER. 79
