Practical engineering drawing and third angle projection, for students in scientific, technical and manual training schools and for ... draughtsmen .. (1897)
Willson, Frederick Newton, 1855-1939 · Princeton, N.J., The author · leaf 162

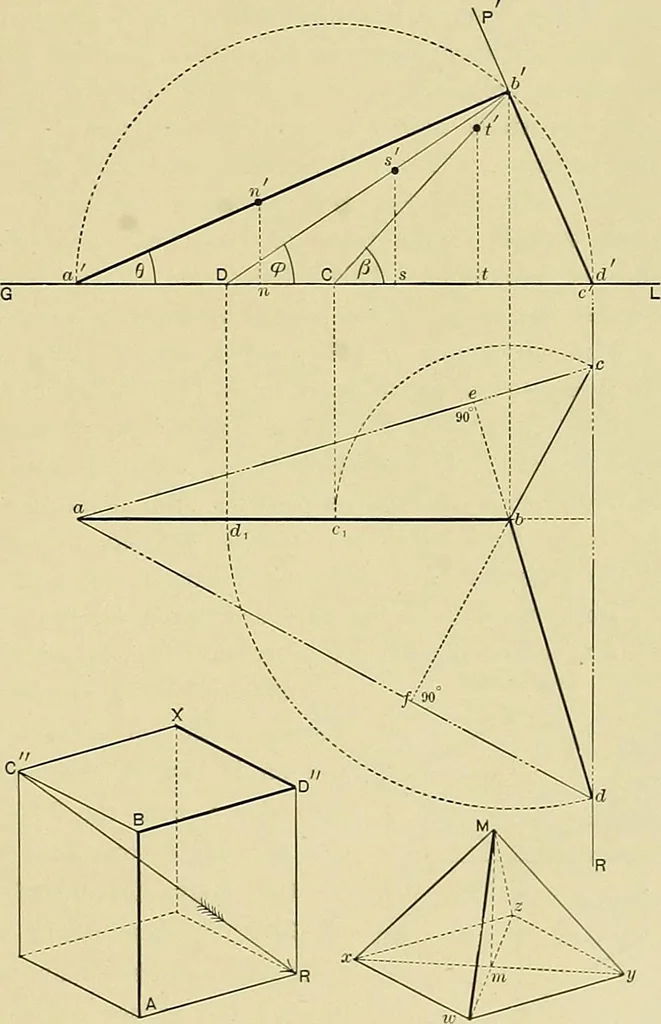

forming a solid rightangle at h. Let the line a b be inclined atsome given angle 6 to the j^lane of projection.Locate a vertical plane parallel to a h and pro-ject the latter upon it at ab, at ^° to thehorizontal. Since the ])lane of the other twoaxes is perpendicular to ah, ab, its traceswill be… … centre b, obtaining c. Cj and draw arc c^c. Join a with c; then a c is the trace of the plane of the axes h a and b c, and being perpen-dicular tu the third axis we may di-aw the latter as the line ebd, making 90° with a c. 242 THEORETICAL AND PRACTICAL GRAPHICS. Carry d io d^ about h; project d^…
Mechanical drawing · Lettering
