Practical stationary engineering : in form of questions and answers (1909)
West, Andrew Cassius, 1855- · Boston, Mass. : A.C. West · leaf 181

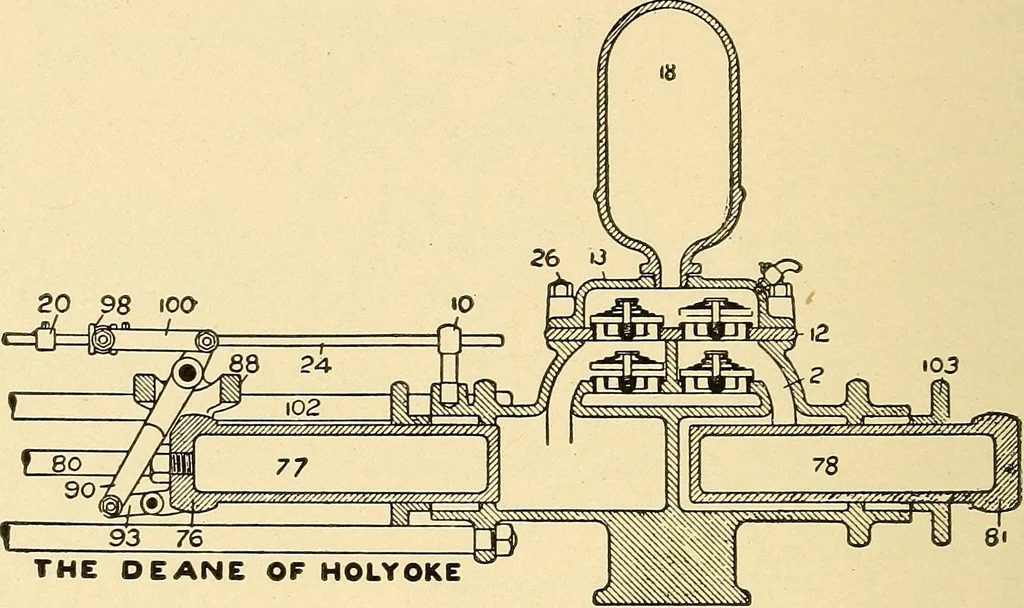

ump end, as a whole, is consequentlydouble acting. Single Steam Pump in Detail.Describe the difference between a piston and a plungerpump. 168 PRACTICAL STATIONARY ENGINEERING In a piston pump the piston fills the whole diameter ofthe cylinder, while in a plunger pump the plunger does notfill the… … Figure 45.Double Plunger Pattern. cylinder, and travels forward and backward in the parti-tion between the two ends of the cylinder, are not packed,the plunger sliding in a long sleeve, or lining. Outside plunger pumps—that is, those where the plungermoves in and out of the cylinder from the…
Steam engineering · Steam-engines · Steam-boilers
