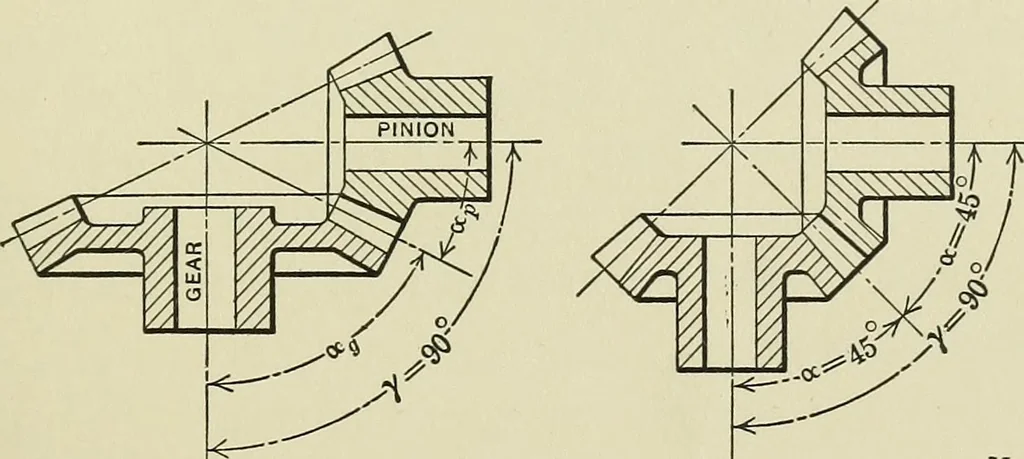

own in Fig. i. Theterm pitch cone may be defined as follows: The pitch conesof a pair of bevel gears are those cones which, when mountedon the shafts in place of the bevel gears, will drive each other by 200 RULES AND FORMULAS 20I frictional contact in the same velocity ratio as given by the… … Machinery Fig. 3. Right-angle Bevel Gearing Fig. 4. Miter Gearing with each other, measured on the side on which the contactbetween the cones takes place. The center angle and the pitchcone angles of the gear and the pinion are indicated in Fig. i. Different Kinds of Bevel Gears. — In Fig. 3 is…
