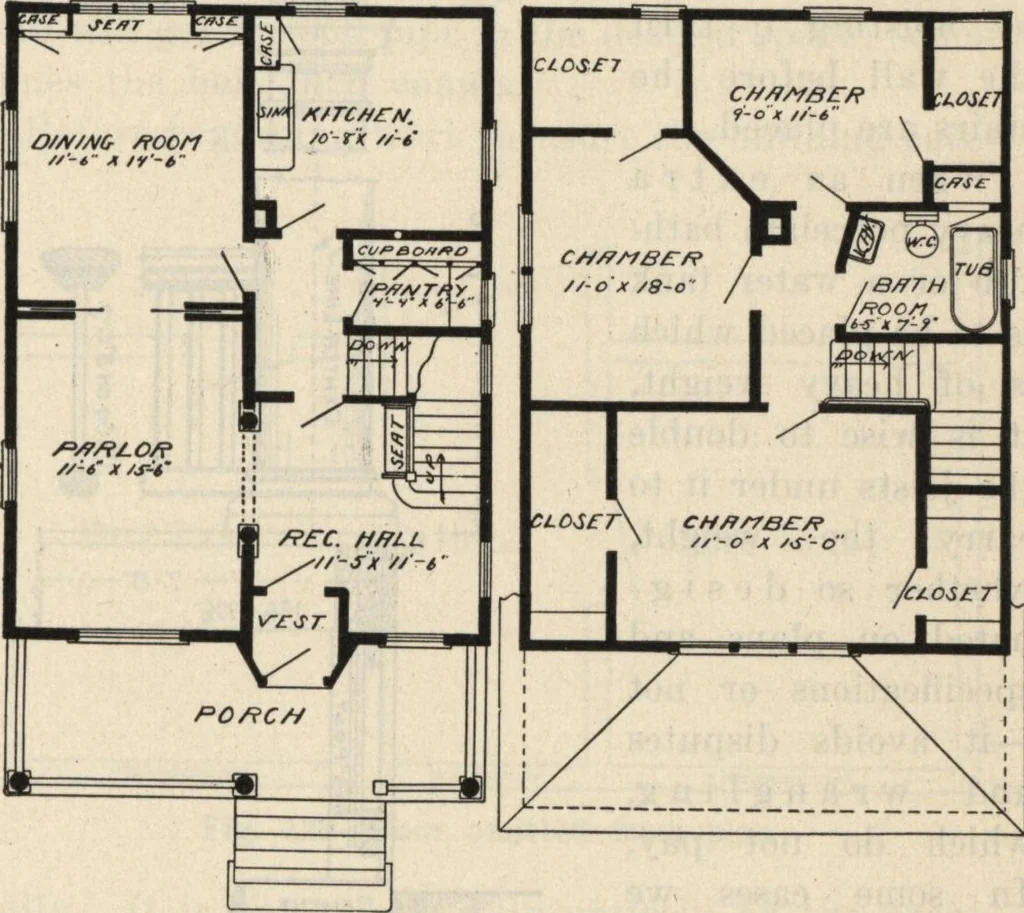

^,1 Fig. 124—Porch facia shown continuous. … First floor plan. Second floor plan. across the opening and run a half beam all aroundjust the same as if it was indicated on the plan asshown in Fig. 133. Watch Out for Special Fixtures. Look over the plans for the fixtures, particularlythe bath tub, range, water tank, etc., to see if thedoors or…
