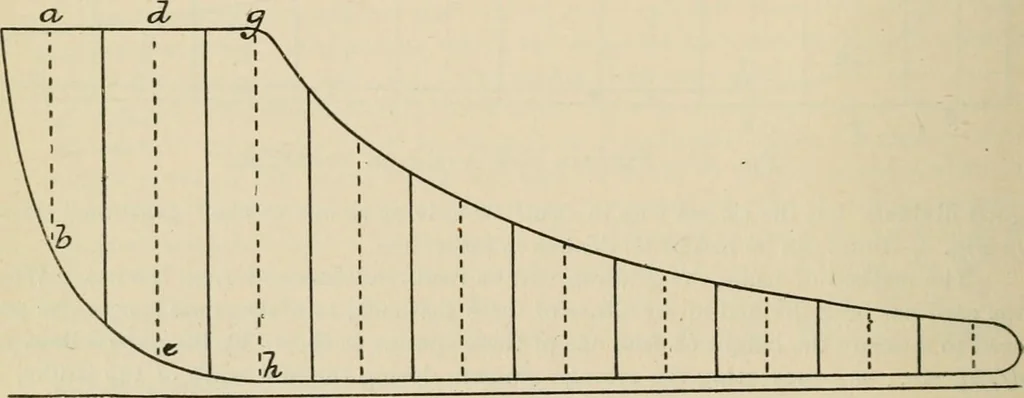

will be apparentupon referring to Fig. 4,which is the same as Fig.2, except that the lowerlines have been left outfor greater clearness. Wehave therefore arrived atthe following important fact: The average effective pressure in one end of the cylinderof an engine is represented by the average width… … Fig. 4. — Finding the Average Pressure. 1894.] THE LOCOMOTIVE, 141 multiplying the average width <>f tlur card, in inches, by the number of the spring that.was used in taking the card. The only reason why we use a planimeter, in figuring up engine cards, is that thatinstrument gives us an…
