Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 106

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 106

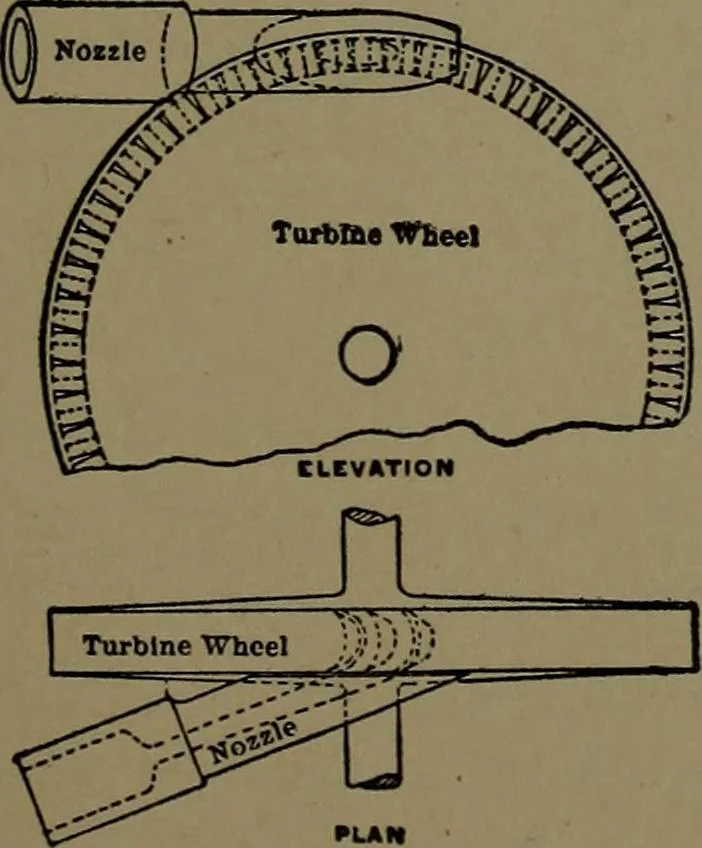

369. DE LAVAL STEAM TURBINE.— A jet or jets of steam impinge at a smallangle upon the concave buckets at the per-iphery of a disc wheel, pass through thecavities between the buckets and exhaust atthe other side. The buckets are lunette.The nozzle has an expanding orifice. 370. Plan showing nozzle…
