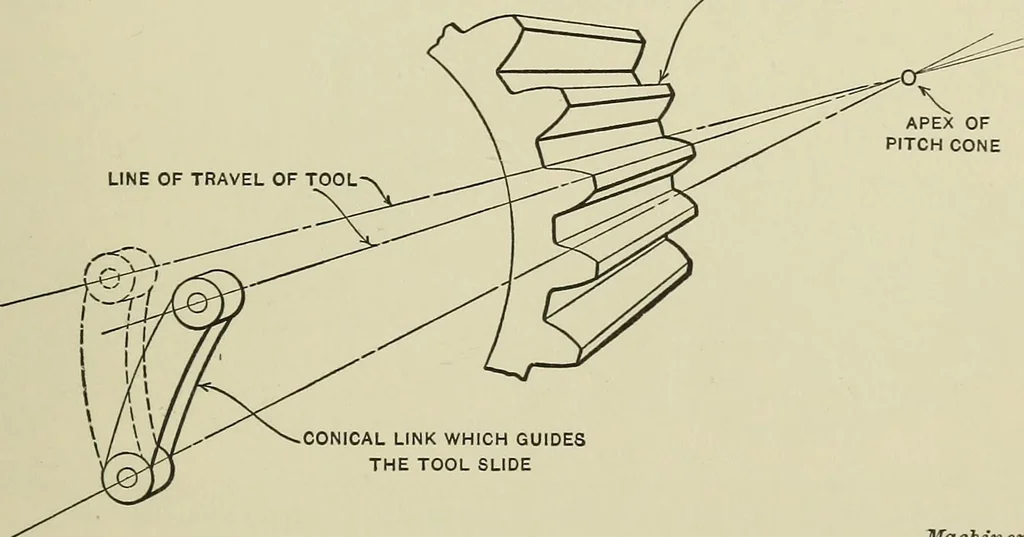

This slide may be swiveled in anydirection and in any plane about this apex, and its outer end issupported by the roller on the former. With this arrangement,in the case shown, as the slide is swiveled inward about the apex,the roll runs up on the former, raising the slide and the tool so asto… … -CONICAL LINK WHICH GUIDESTHE TOOL SLIDE Machinery Fig. 6. The Odontographic Principle for Forming the Teeth of Bevel Gears at this point, and the outlines are similar at all sections of thetooth, although with a gradually decreasing scale as the apex isapproached — all as required for correct…
