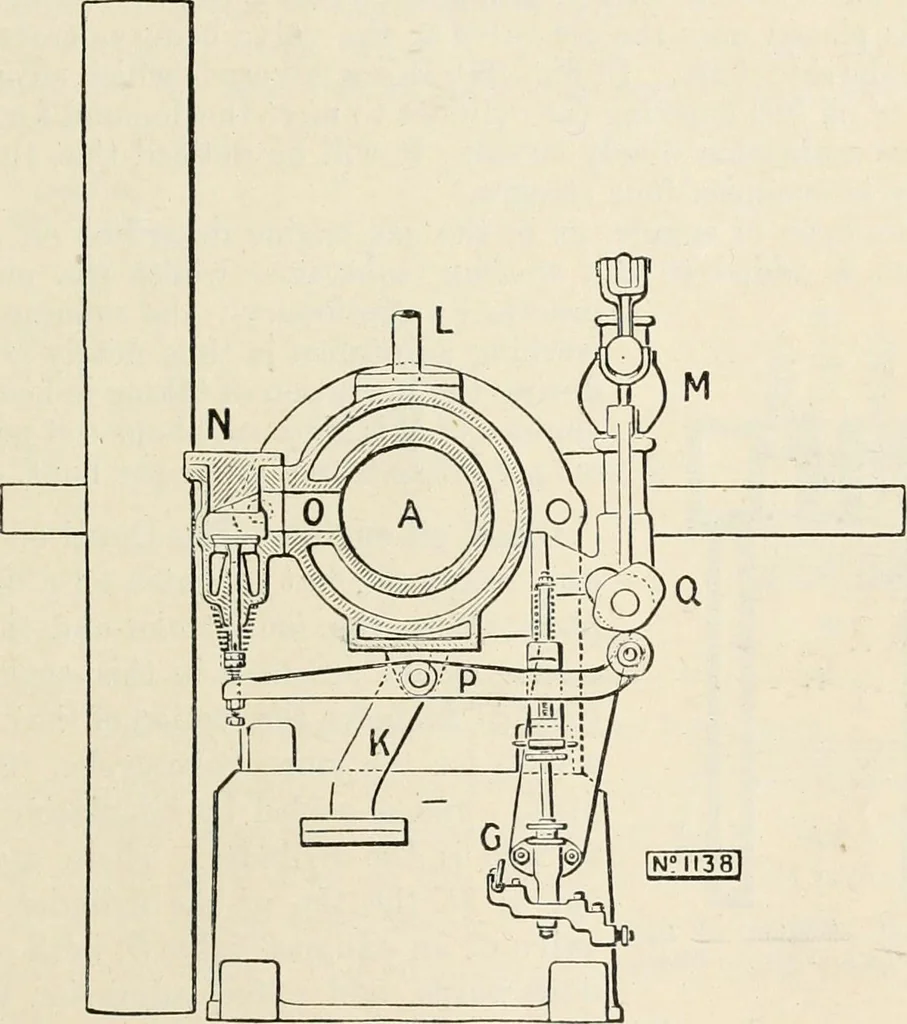

ORNSBY AKROYD OIL ENGINE 525 main jacket through a pipe and regulating cock at F. The portion Ehas no water jacket, and therefore becomes hot when the engine isworking. This portion forms the vaporiser, and oil is injected into itat the proper time through a small opening at K. The engine willnot… … Fro. 480.—Sectional end elevation of the Hornsby Akroyd oil engine. A cross section of the cylinder is given in Fig. 480. In this view isshown a pump G which draws oil fuel from a tank and pumps it intothe hot bulb. This pump is operated by the lever P, which alsoopens the valve N, through which…
